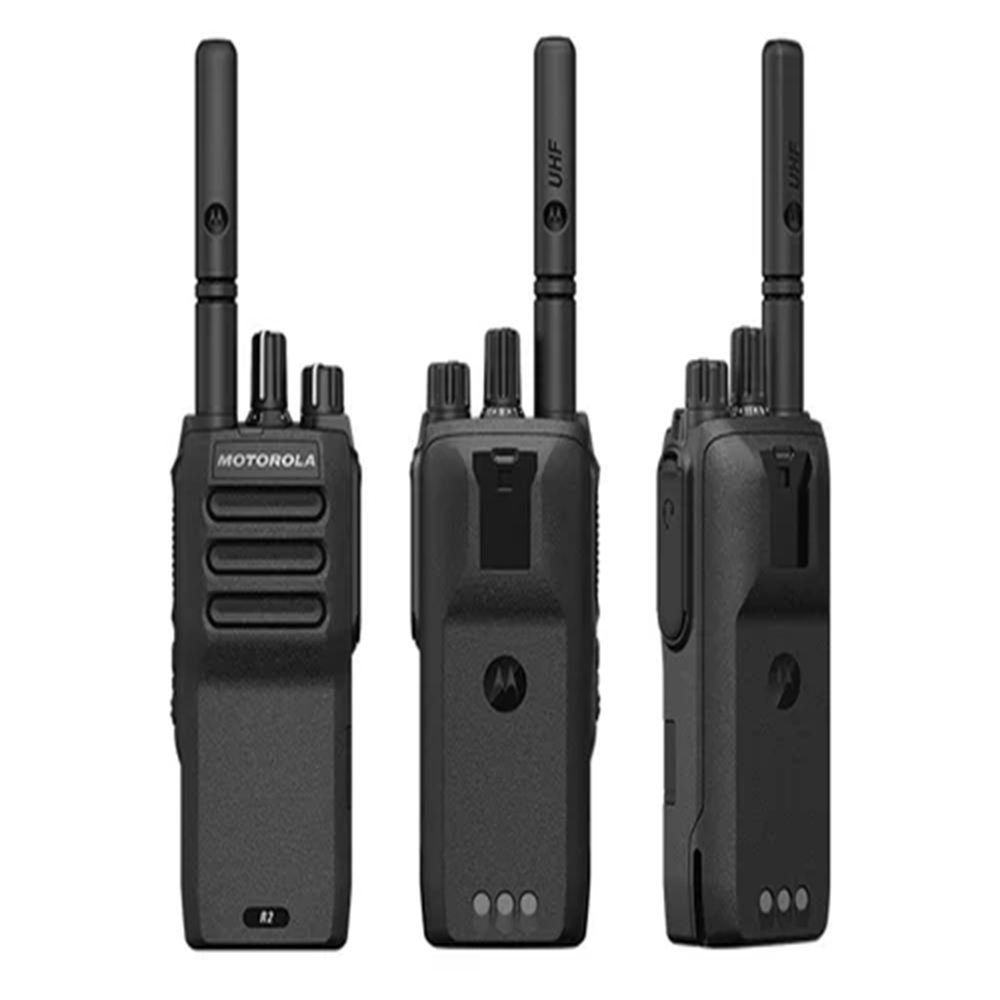

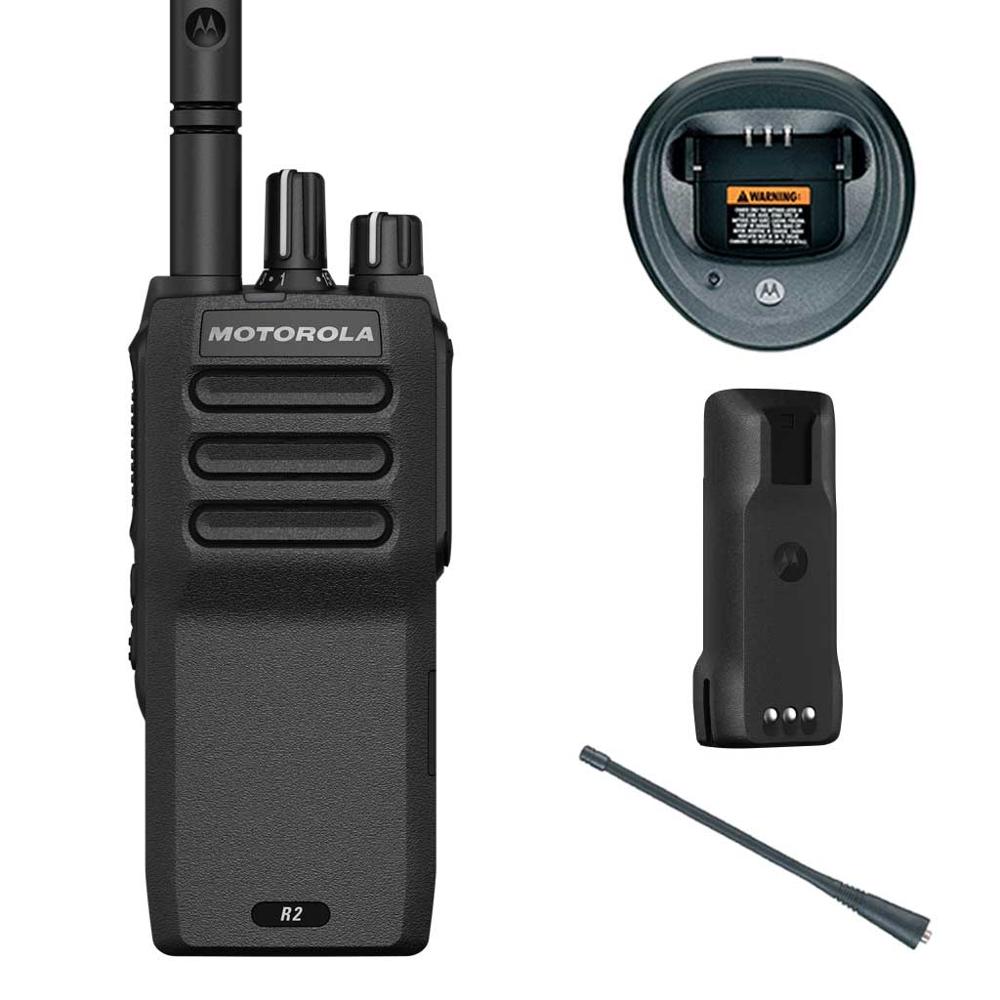

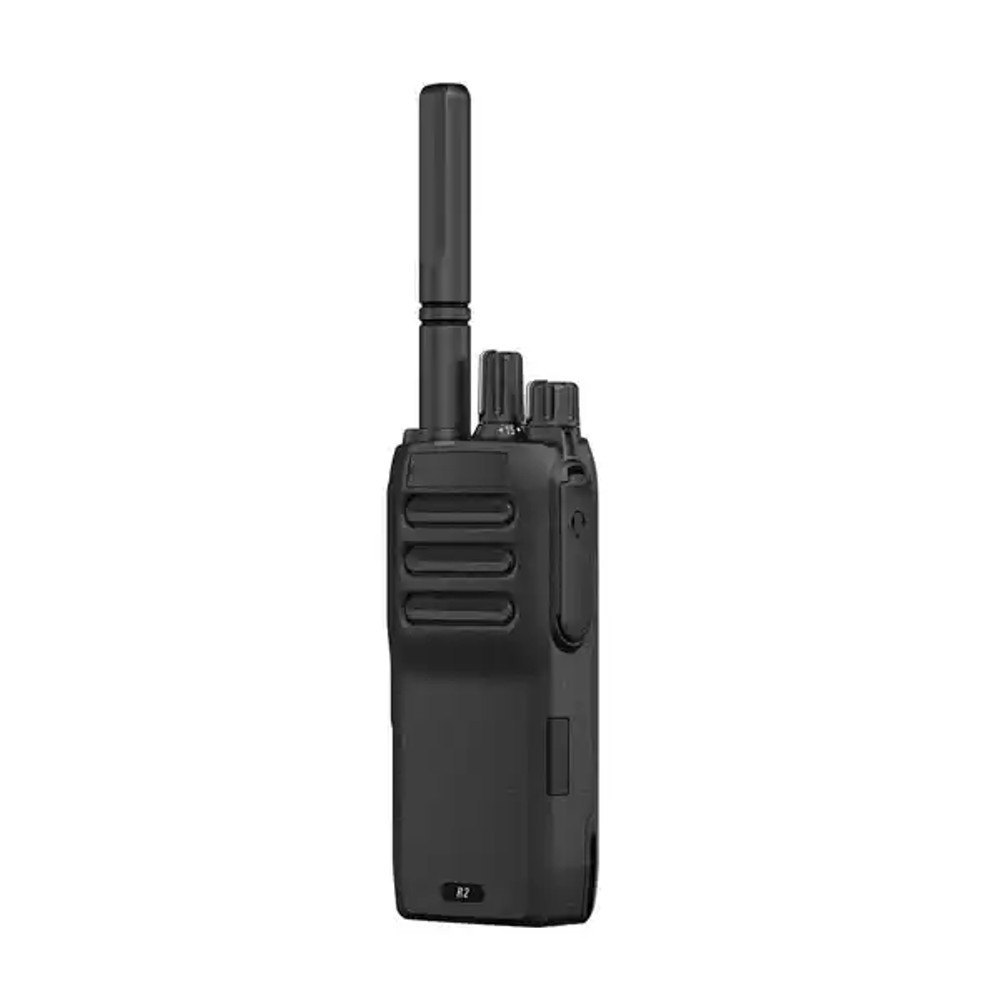

Motorola Walkie Talkie

Product Description

Motorola Wireless Two Way Radio

This Motorola Wireless Two Way Radio helps improve your business productivity. Enable you to efficiently coordinate and communicate with your workforce, this two- way radio is rugged in construction. Enables instant push-to-talk communications across workgroups, this Motorola Wireless Two Way Radio is compatible for use with any number of networks, devices, apps, cities and facilities. This ensures enhanced safety, efficiency and productivity.

Features:

• Easy set- up
• Interoperability between systems
• Simple to configure

UHF Radio

ADVANCED AUDIO TECHNOLOGY

Sound quality is critical for effective communications. The GP Plus Radio series is specially equipped with Motorola's voice compression and expansion technology called X-PANDTM. The X-PAN DTM feature enables crisper, clearer and stronger audio quality, allowing users to continue communicating even in noisy conditions. In addition, low-level expansion enables further improvements in audio quality by reducing unwanted background noise usually heard during pauses in conversation.

LED BATTERY GAUGE

The tri-colour LED battery gauge at the top of the radio alerts the users to recharge the battery should the battery level run low.

SWITCHABLE RF POW ER LEVEL

By just pressing one button, users can switch to a low power when communicating within limited range coverage or switch to a high power level when further distance is required. High transmit power optimises range coverage while a low transmit power conserves battery consumption.

REPEATER/TALKAROUND ENABLE/DISABLE

Users have the freedom to communicate through a repeater for wide area coverage, or bypass a repeater and talk directly to another radio if the coverage is within the range or when the repeater fails.

TIGHT/NORM AL SOUELCH

Users have the flexibility to protect their communication by selecting to a tight squelch to filter interference of unwanted weak signal; or switch to normal squelch to increase coverage.

LITHIUM ION BATTERY OPTION

Using the latest technology in battery chemistry, Motorola's GP Plus series offers a Lithium Ion battery option which provides high power at a lighter weight.

PROGRAMMABLE CHANNEL SPACING (12.5/20/25 kHz)

The series allows programmable channel spacing of 12.5/20/25 kHz; offering flexibility and easy migration of channel spacing requirements when the need arises.

4CHANNEL

Provides users with 4 channels to organise different work groups to meet their different communication needs.

CHANNEL SCAN

Allows the user to monitor activities on different channels.

SIGNALLING FEATURES

The GP328 Plus 4 channel model offers the following M DC1200 signalling:

PTT-ID (Encode)

Radio Check (Decode)

EMERGENCY "PERSONAL SAFETY" SIREN

At the touch of a button the Emergency Personal Safety Siren can be activated emitting an ear piercing alarm.

PL/DPL

Private Line and Digital Private Line enables multiple work groups to be allocated to a common channel.

TIM E-OUT-TIMER

Will time out communication after a predetermined time, allowing channel access to more users.

BUSY CHANNEL LOCKOUT

In the event of a busy channel the radio will alert the user that another person is on the channel.

GP328 Plus 16CH

Building upon the features of the GP328 Plus 4Ch, the GP328 Plus 16Ch has the following additional features:

16 CHANNELS

Provides users maximum of 16 channels to organise different work groups to meet their different communication needs.

TONE TAGGING

Allows 8 different ringing tones to be assigned to 8 specific users/talkgroups providing audio caller identification to these 8 groups.

EMERGENCY ALARM/SIREN AND EMERGENCY CALL

In addition to the easy-to-use, one touch emergency Personal Safety siren button which emits a piercing alarm, the GP328 Plus 16Ch has an Emergency Call function which when activated in the event of critical situations will send a 'pre-canned' alert back to a pre-determined radio or base.

ENHANCED SIGNALLING FEATURES

MDC1200:

Call Alert (Decode)

Voice Selective Call (Decode)

Selective Radio Inhibit

Quick Call II

Call Alert (Decode)

Voice Selective Call (Decode)

Dual Tone Multiple Frequency

(DTM F) Signalling (Encode)

GP338 Plus 128CH

Equipped with a alpha-numeric keypad and display the GP338 Plus offers enhanced functionality in addition to the features of the GP328 Plus series.

128 CHANNELS

Provides up to a maximum of 128 channels providing greater flexibility in organising different work groups.

14-CHARACTER ALPHA-N UM ERIC DOT MATRIX DISPLAY

The 14 character alpha-numeric display allows immediate communication of vital information such as PTT ID, radio strength indicator and signal strength indicator. In addition, the user-friendly icons make the information easy to read and understand. The keypad and display illuminations also provide the visibility to operate your radio in the dark.

RECEIVED SIGNAL STRENGTH INDICATOR

An easy to read on screen display indicator notifies users of signal strength in their vicinity.

NAME & TONE TAGGING

The capability of assigning 8 different ringing tones and visual caller IDs to 8 specific users/talk groups enhances audio and visual caller identification for these 8 groups.

BATTERY STRENGTH INDICATOR

Easy to read on-screen LCD display indicator alerts users on low battery strength.

MENU KEYS

The easy to navigate menu keys allow users to select relevant functionalities.

PTT-ID

Every time the PTT button is pressed, it enables the transmission of the caller ID.

STATUS/MESSAGES

This feature enables you to replace frequently used voice calls with status messages, saving you valuable communication time.

CALL ALERT

If your call to a radio has no response, the radio will emit an alert tone until the other party takes action.

Technical Specifications
